HYDRAULIC GANTRIES(20TON~1100TON)

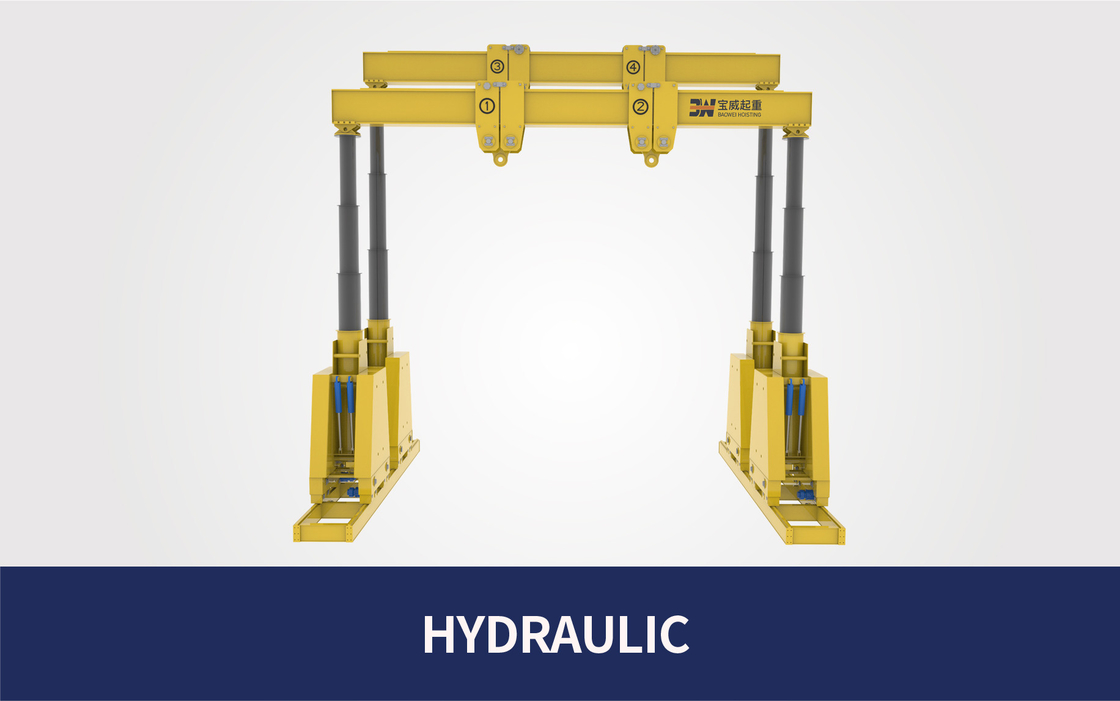

Hydraulic gantry crane, mainly used for lifting and assembling large equipment (20t-1100t). The crane adopts a modular structural design, which facilitates the assembly, disassembly, and transfer work of the crane. The crane has a compact structure, which is suitable for both small space and outdoor use.

• Compared to conventional roll style bridge cranes, hydraulic gantry cranes operate more smoothly and have higher lifting and operating accuracy.

• The hydraulic gantry crane adopts advanced hydraulic system and electrical control technology, which has the characteristics of fast start and precise computer control operation.

• The crane consists of 4 lifting modules, 2 main beam modules, and 4 trolley lifting point modules.

• The main beam and the lifting module are connected through pressure plates and bolts to adapt to different span combinations at different positions;

• The trolley is movable and suitable for lifting transformers of different sizes;

• The electrical connections are all made using quick connectors, which can be directly plugged in at the installation site;

• The hydraulic system has a simple structure, detachable components, convenient replacement and maintenance, greatly reducing maintenance costs.

• After dismantling, the crane can be loaded into a 40 foot container;

• The crane is also equipped with multiple safety protection devices.

• Mechanical protection device: mechanical latch (optional);

• Hydraulic protection device: hydraulic quick break device, safety valve, brake system, brake system;

• Electric control protection device: overload sensing system, 95% rated load alarm, 105% rated load alarm and stop, normal (limit) stop for rise and fall, zero position protection, overcurrent (voltage) protection, undervoltage protection, short circuit protection, overheating protection, and leakage protection.
